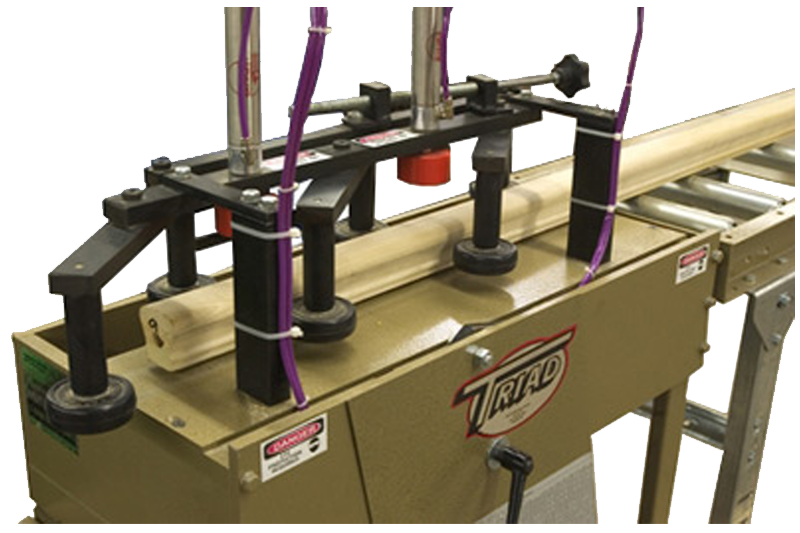

Handrail Boring Machine

Background Image

A proven workhorse in professional stair production everywhere.

Use the Triad Handrial Boring Machine to bore out handrails simply and effectively.

Handrail Boring Machine
  • Full Description
  • Specifications

The machine is easy to operate, adjust and maintain. It is equipped with a screw system for six adjustable wheels. These wheels are a guide for the handrail and ensure a secure hold. They are entirely adjustable for different widths and can go to as wide as 6 inches.



Specifications

  • Electrical Standard: 208/240/480 VA,3 PH
  • Air Requirements: 1 CFM at 90 PSI
  • HP: 3
  • Weight: 1,500 lb.

Capabilites

  • Drill Diameter: 1/2" to 1"
  • Drill Depth: 2 1/2" Max
  • Drill Angle: 0 Degrees to 45 Degrees
  • Hole Spacing: 2-1/4" to 7-1/2"
*Specifications subject to change without notice.
