A proven workhorse in professional stair production everywhere.

The only Open Stair Router to cut up to four stringers at a time, in just seconds per a step!

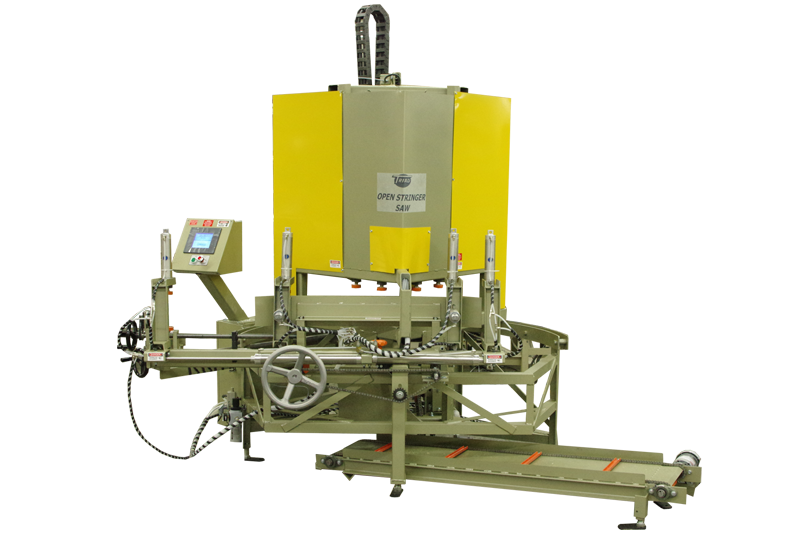

Open Stringer Saw

Triad's Open Stringer Saw (OSS) was designed to increase productivity and cut a perfect stringer every time.

The OSS is powered by two soft start motors and uses two 30"x 80 tooth carbide tipped blades.

The OSS is PC controlled and has automatic indexing and cutting. In-feed and out-feed roller conveyors come as standard equipment with the unit.

Specifications

Electrical Standard: 240 Vac, 3 PH, 60 AMPs
Air Requirements: 100 PSI, 2 CFM
Size: 36' L x 15'10" W
Weight: 2,700 lb.

Capabilites

Cut up to four separate 2" x 10" or 2" x 12" stringers at one time
Accommodates 25 to 45 degree stringer angles

*Specifications subject to change without notice.
